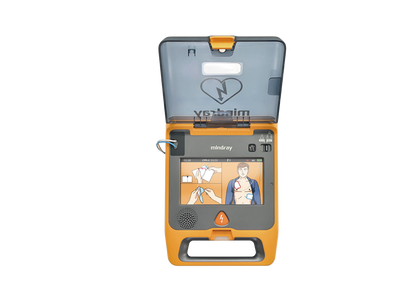

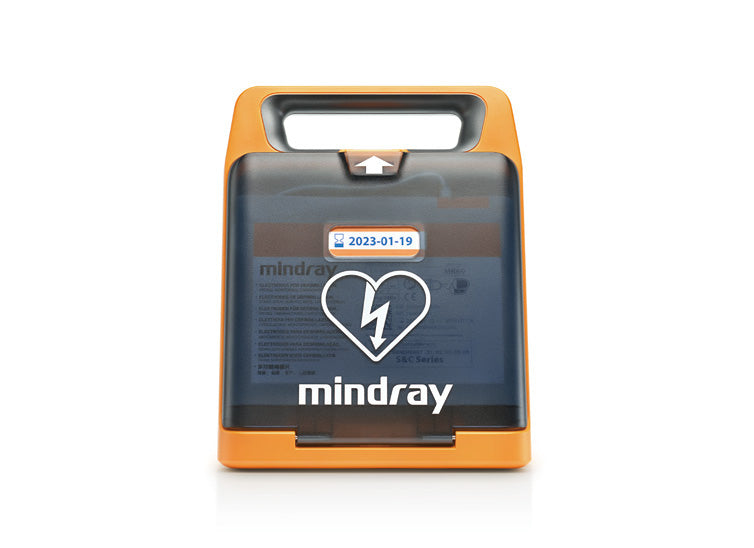

Smart and Easy – Offering a Reliable, Durable and Easy to Use AED for First-time rescuers with full-colour 7″ screen.
Designed for first-time and infrequent rescuers, the BeneHeart C2 delivers the latest in easy-to-use AED technology. Combining ResQNavi™ coaching with QShock™ rapid analysis, it delivers the first shock in under 8 seconds. With high-energy 360J biphasic capability and rugged IP55 protection, the BeneHeart C2 offers a dependable public-access AED.
| Weight | 3.5 kg |
| Dimensions | 25.5 × 40 × 16.5 cm |
| Pricing Unit | Each |
| Minimum Order Qty | 1 |
| ARTG ID | 166368 |
| GMDN Code | 48047 |
| Medical Device Class | Class 2b |
| UNSPSC | 42172101 |
| Tax Schedule | Non-Taxable |
| Location | AU-Cameron Dr |
| Is Dangerous Good | Yes |
| Operating configurations | Semi-automatic and fully automatic options; choose the required operating mode when ordering |
|---|---|
| Display | 7-inch TFT colour screen with automatically adjusting brightness |

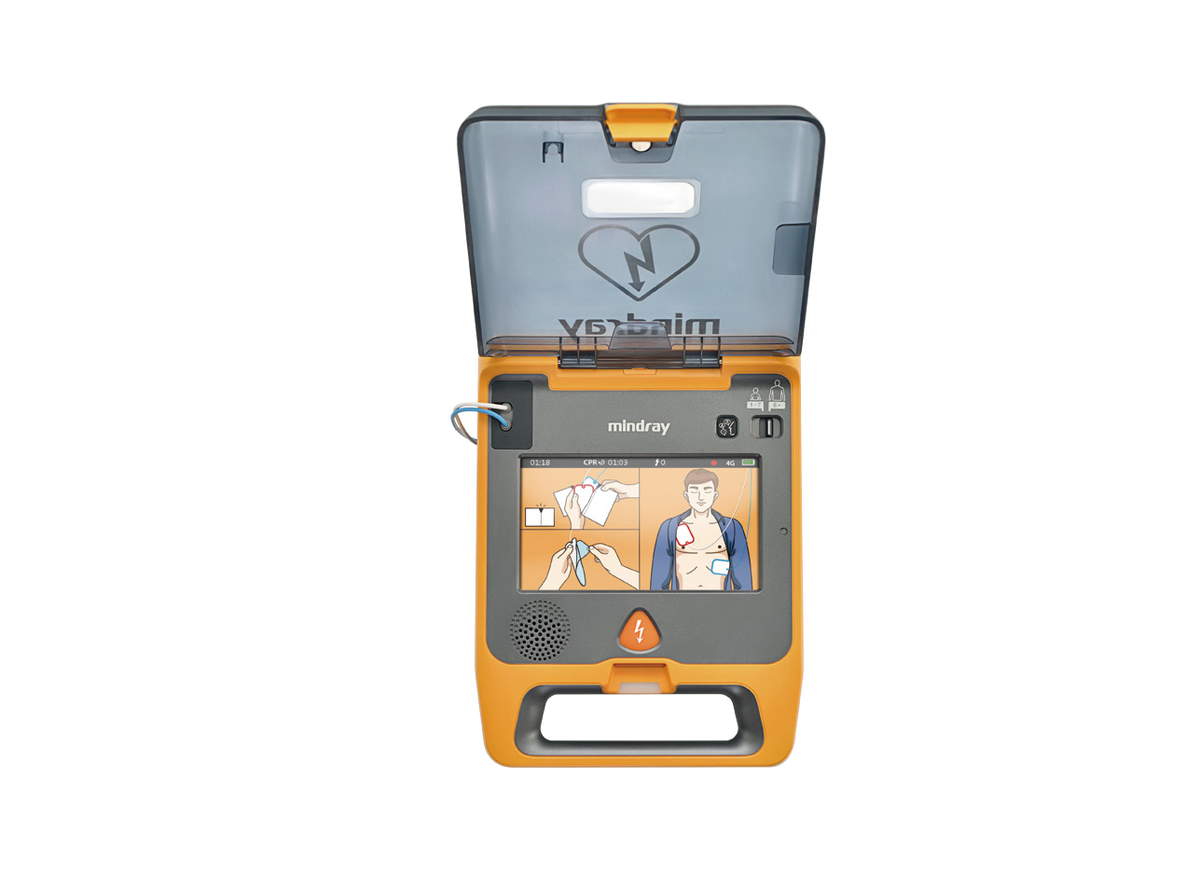

| Power-on | Opens and powers on when the lid is lifted |
| Languages | Up to three selectable preconfigured languages |
| Patient modes / electrodes | Adult/child selector with pre-connected adult/child electrodes |
| Waveform / maximum energy | Biphasic technology with automatic compensation for patient impedance; up to 360 J |
| Rescuer guidance | ResQNavi™ adapts voice prompts and animations to the rescuer’s proficiency and pace |
| CPR guidance | Metronome and configurable 30:2, 15:2 or hands-only CPR guidance |
| CPR feedback | Available when configured with an optional CPR sensor; not standard without the sensor |
| QShock™ timing | The brochure specifies first shock in under 8 seconds, excluding the time taken to apply the pads |
| QShock™ sequence | Power-on in 2 seconds; ECG analysis in 5 seconds; effective charging time of 0 seconds because pre-charging occurs during ECG analysis |
| Ingress protection | IP55 dust and water protection |
| Drop test | 1.5 m on six surfaces |
| Battery and pads | Up to five-year life cycle; actual life depends on use, storage and expiry dates |
| Remote management | Optional Wi-Fi or 4G configuration for AED-Alert™ 2.0; availability depends on model and local service |
| Remote management functions | When equipped and connected: device overview, AED fault notifications, battery/pad expiry reminders and electronic-fence monitoring |
| Device weight | Approximately 2.3 kg, including one battery and excluding Wi-Fi/cellular modules |
| Device dimensions | 210 × 286 × 78 mm (width × depth × height) |
Source: the supplied Aero Healthcare / Mindray BeneHeart C2 brochure. Device weight and dimensions are from the Mindray C/S-series operator’s manual. Timing figures are the manufacturer’s stated conditions and exclude electrode application time. CPR sensor, wireless connectivity and remote management depend on the selected configuration. Refer to the manufacturer’s instructions for full specifications.
